Name: Knox Krypton 9000 Hybrid Solar Inverter 6.2kW | High Current MPPT | Batteryless | Grid Feeding | WiFi Monitoring - KNOX Pakistan
Price: 147999 PKR
Availability: InStock

Knox Krypton 9000 Hybrid Solar Inverter 6.2kW | High Current MPPT | Batteryless | Grid Feeding | WiFi Monitoring

Knox Krypton 9000 hybrid inverter with 30A MPPT (40A Isc), batteryless operation, grid feeding, built-in WiFi, DC output & parallel up to 9 units.

0 People watching this product now!

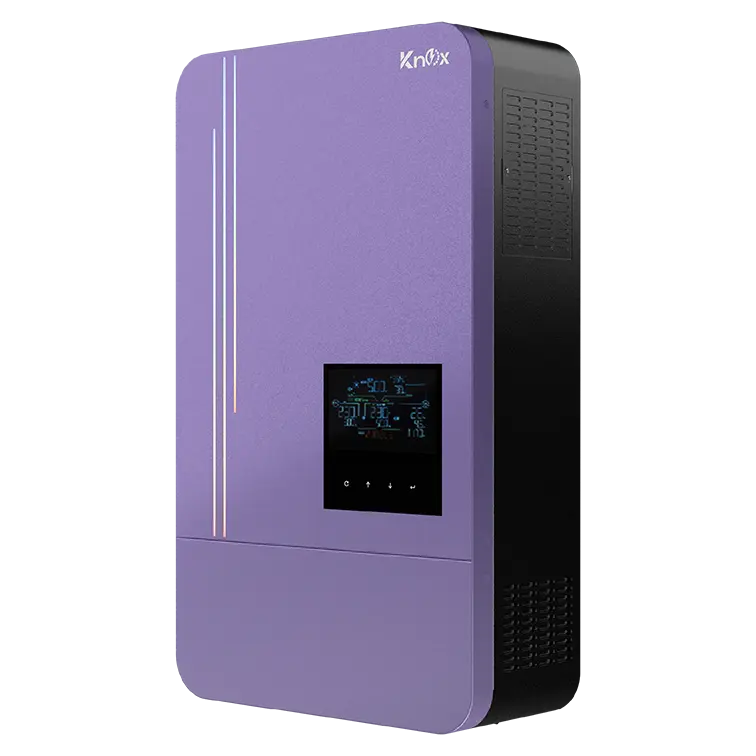

Knox Krypton 9000

Knox Krypton 9000 hybrid inverter with 30A MPPT (40A Isc), batteryless operation, grid feeding, built-in WiFi, DC output & parallel up to 9 units.

⭐ Short Product Description

The Knox Krypton 9000 is a powerful hybrid solar inverter designed for high-current solar panels, offering battery-independent operation, grid feeding, intelligent load management, and parallel scalability. Ideal for residential and commercial solar systems requiring efficiency and reliability.

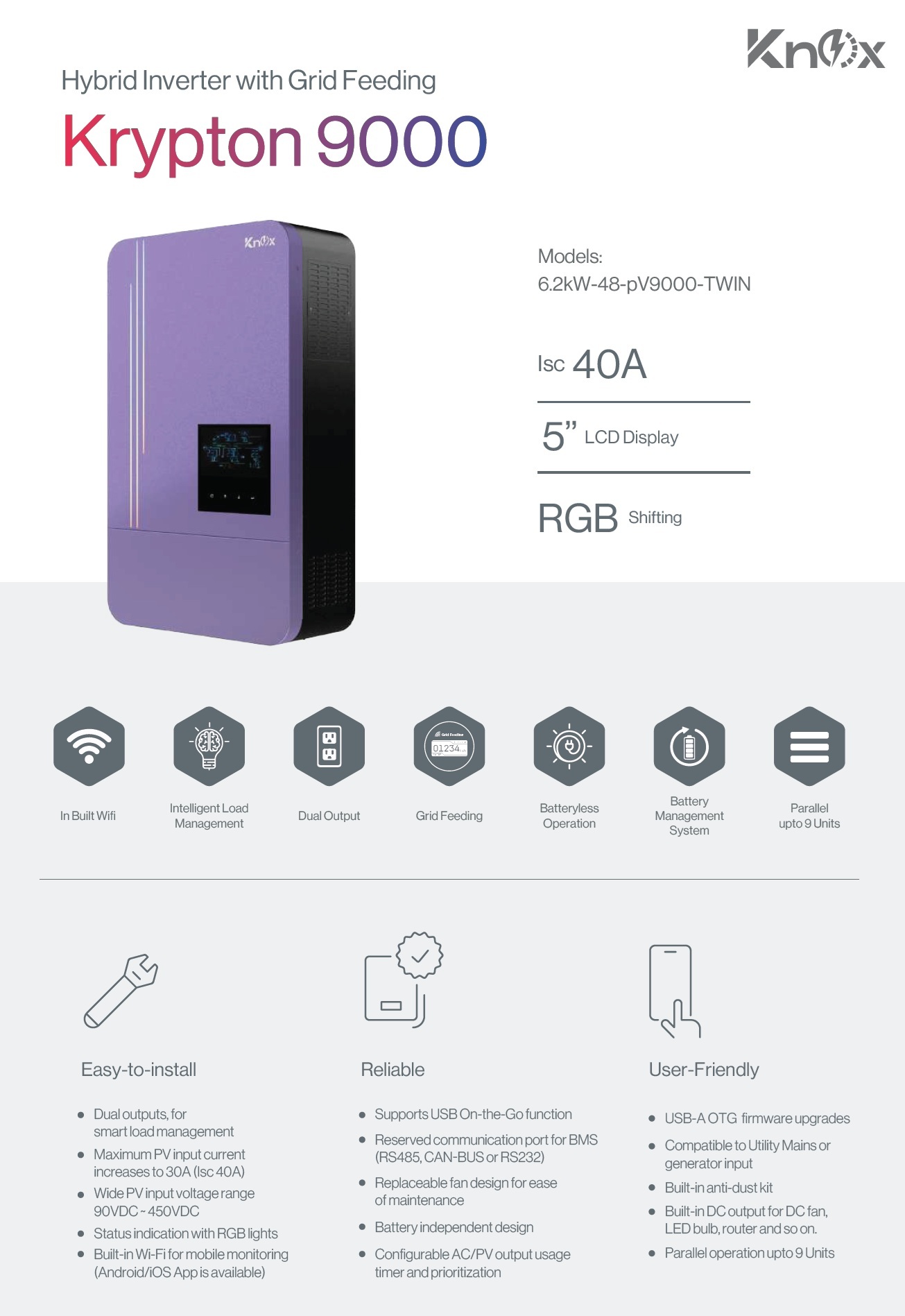

🔥 Key Features & Highlights

✅ Batteryless Operation (Works with or without batteries)
✅ High Current MPPT – 30A (Isc 40A)
✅ Maximum PV Power up to 9000W
✅ Dual Output for Smart Load Management
✅ Parallel Operation up to 9 Units
✅ Built-in WiFi Monitoring (Android & iOS)
✅ USB-A OTG Firmware Upgrades
✅ 5” LCD Display with RGB Status Lights
✅ Built-in DC Output (DC fan, LED bulb, router)
✅ Compatible with Utility Grid & Generator
✅ Replaceable Fan & Anti-Dust Kit
✅ Pure Sine Wave Output
✅ Reserved BMS Port (RS485 / CAN / RS232)

⚡ Technical Specifications – Knox Krypton 9000

🔹 General Information

Parameter	Specification
Brand	Knox
Series	Krypton
Model	6.2kW-48-pV9000-TWIN
Phase	Single Phase
Inverter Type	Hybrid with Grid Feeding
Display	5” LCD
Parallel Capability	Up to 9 Units
Output Waveform	Pure Sine Wave

☀️ PV Input (DC)

Parameter	Value
Maximum PV Input Power	9000 W
Nominal / Max DC Voltage	500 VDC
Start-up Voltage	120 VDC
Initial Feeding Voltage	150 VDC
MPPT Voltage Range	120 – 430 VDC
MPPT Trackers	1
Maximum Input Current	30 A (Isc 40 A)

🔌 AC Output (Load & Grid)

Parameter	Value
Rated Output Power	6200 W
Battery + PV Output Power	6200 W
Nominal Output Voltage	220 / 230 / 240 VAC
Output Voltage Range	184–264.5 VAC / 195.5–253 VAC
Nominal Output Current	28.26 A
Power Factor	> 0.99
Frequency	50 / 60 Hz (Auto Sensing)
Surge Power	12400 VA
Transfer Time	10 ms (PCs) / 20 ms (Appliances)

🔋 Battery & Charging

Parameter	Value
Battery Voltage	48 VDC
Floating Charge Voltage	54 VDC
Overcharge Protection	63 VDC
Solar Charger Type	MPPT
Max Solar Charging Current	142 A
Max AC Charging Current	120 A
Maximum Charging Current	120 A
Battery Support	Lithium & Lead-Acid
BMS Communication	RS485 / CAN / RS232

🌐 Communication & Monitoring

Feature	Support
Built-in WiFi	Yes
Mobile App	Android & iOS
Communication Ports	USB / RS232 / RS485 / WiFi / Dry Contact
Firmware Upgrade	USB-A OTG
DC Output	Yes (Fan, LED, Router, etc.)

🧱 Physical & Environmental

Parameter	Value
Dimensions (D × W × H)	138 × 320 × 550 mm
Net Weight	12 – 13.7 kg
Operating Temperature	-10°C to +50°C
Storage Temperature	-15°C to +60°C
Humidity	0 – 90% RH (Non-condensing)

🛡️ Certifications & Compliance

IEC 61682
IEC 62109-1
IEC 62109-2
IEC 61683
Low Voltage Directive 2014/35/EU

❓ Frequently Asked Questions

Q1: Can Knox Krypton 9000 run without batteries?

Yes, it supports battery-independent (batteryless) operation.

Q2: What makes Krypton 9000 special?

Its high MPPT current (30A / Isc 40A) makes it ideal for modern high-watt solar panels.

Q3: Does it support parallel operation?

Yes, up to 9 units can be connected in parallel.

Q4: Is WiFi monitoring included?

Yes, built-in WiFi with Android & iOS app support.

Q5: Can it power DC devices directly?

Yes, it includes built-in DC output for small DC loads.
