Name: Knox Krypton 9055 Hybrid Solar Inverter 6.5kW | Dual MPPT | Batteryless | Grid Feeding | WiFi Monitoring - KNOX Pakistan
Price: 167999 PKR
Availability: InStock

Knox Krypton 9055 Hybrid Solar Inverter 6.5kW | Dual MPPT | Batteryless | Grid Feeding | WiFi Monitoring

Knox Krypton 9055 hybrid inverter with dual MPPT, batteryless operation, grid feeding, built-in WiFi, 7” HMI screen & parallel up to 9 units.

0 People watching this product now!

Knox Krypton 9055 hybrid inverter

with dual MPPT, batteryless operation, grid feeding, built-in WiFi, 7” HMI screen & parallel up to 9 units.

⭐ Short Product Description

The Knox Krypton 9055 is a high-performance hybrid solar inverter designed for homes, offices, and commercial solar systems. With dual MPPT, battery-independent operation, intelligent load management, and grid feeding, it delivers maximum solar utilization with smart control.

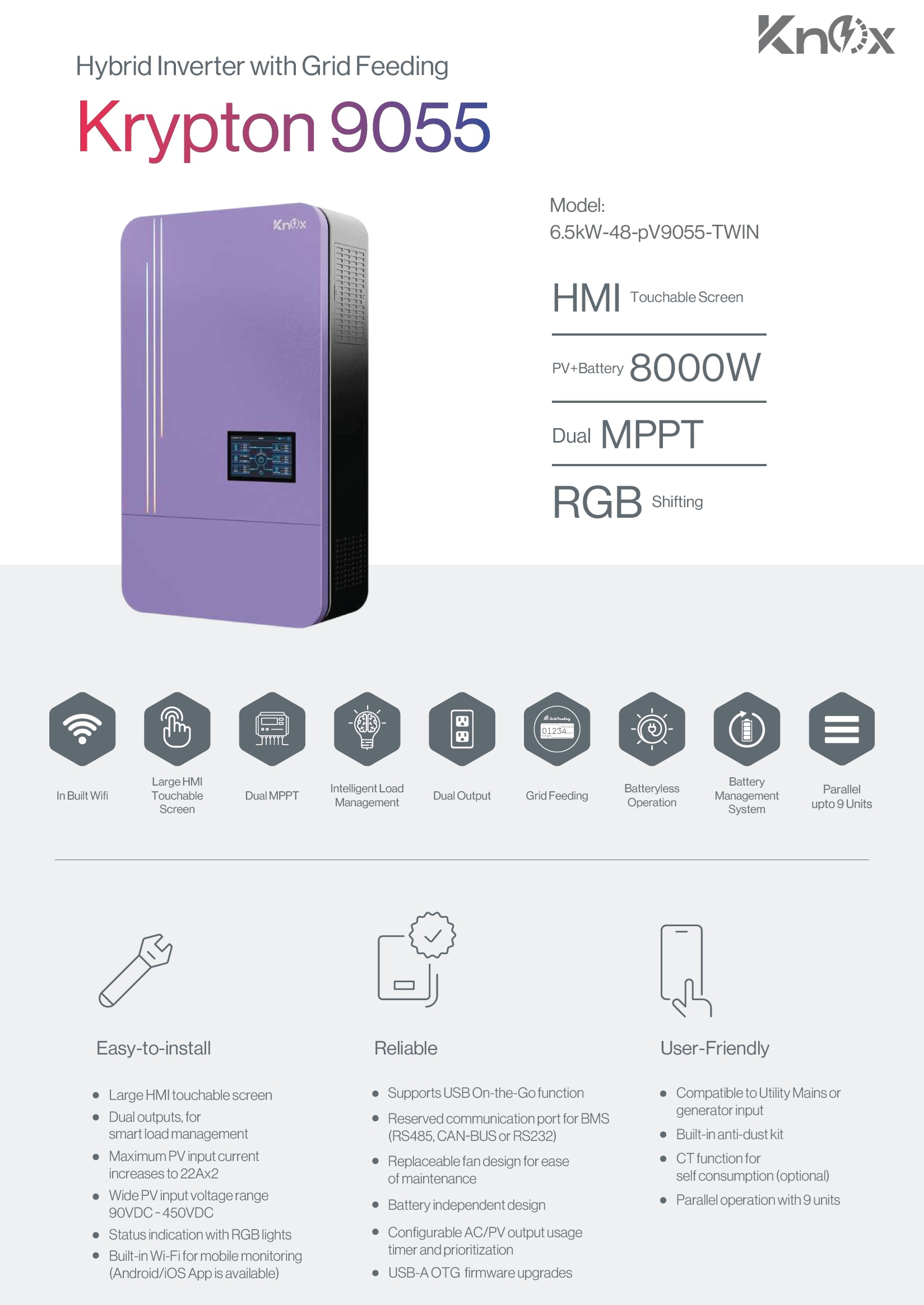

🔥 Key Features & Benefits

✅ Batteryless Operation (Runs directly on PV + Grid)
✅ Dual MPPT (22A × 2) for high-efficiency solar panels
✅ Battery + PV Output up to 8000W
✅ Parallel Operation up to 9 Units
✅ Dual Output for Smart Load Management
✅ Built-in WiFi Monitoring (Android & iOS App)
✅ 7” Large Touchable HMI Display
✅ RGB Status Indicator Lights
✅ USB-A OTG Firmware Upgrade
✅ CT Function for Self-Consumption (Optional)
✅ Generator & Utility Compatible
✅ Replaceable Cooling Fan & Anti-Dust Kit
✅ Pure Sine Wave Output

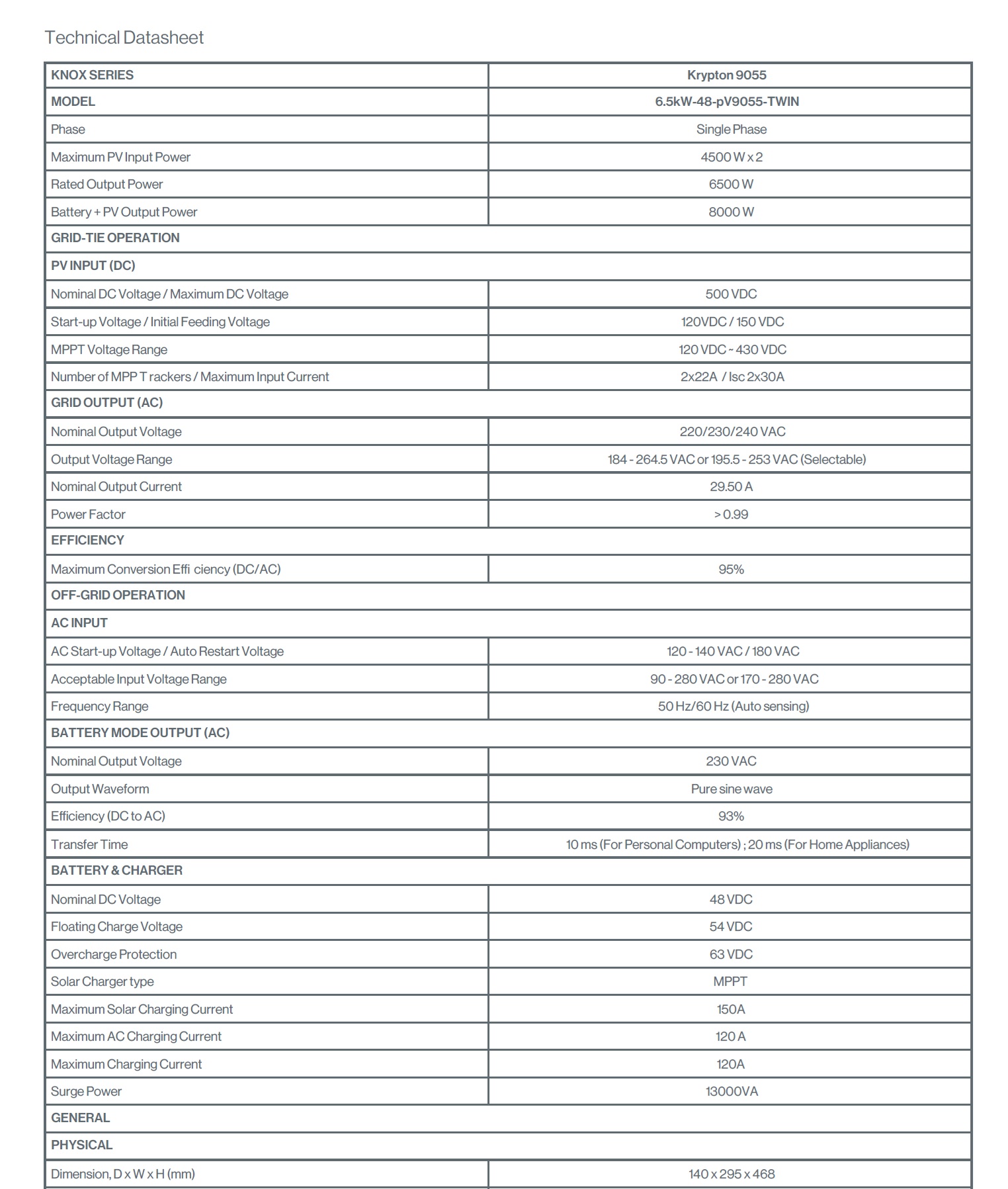

⚡ Technical Specifications

🔹 General Information

Parameter	Specification
Brand	Knox
Series	Krypton
Model	6.5kW-48-pV9055-TWIN
Phase	Single Phase
Inverter Type	Hybrid with Grid Feeding
MPPT	Dual MPPT
Parallel Support	Up to 9 Units
Display	Large HMI Touch Screen
Output Waveform	Pure Sine Wave

☀️ PV Input (DC)

Parameter	Value
Max PV Input Power	4500W × 2
Max DC Voltage	500 VDC
Start-up Voltage	120 VDC
Initial Feeding Voltage	150 VDC
MPPT Voltage Range	120 – 430 VDC
MPPT Trackers	2
Max Input Current	22A × 2 (Isc 30A × 2)

🔌 AC Output (Grid & Load)

Parameter	Value
Rated Output Power	6500 W
Battery + PV Output	8000 W
Nominal Output Voltage	220 / 230 / 240 VAC
Output Voltage Range	184–264.5 VAC / 195.5–253 VAC
Nominal Output Current	29.5 A
Power Factor	> 0.99
Surge Power	13000 VA
Frequency	50 / 60 Hz (Auto Sensing)
Transfer Time	10 ms (PCs) / 20 ms (Appliances)

🔋 Battery & Charging

Parameter	Value
Battery Voltage	48 VDC
Floating Voltage	54 VDC
Overcharge Protection	63 VDC
Max Solar Charging Current	150 A
Max AC Charging Current	120 A
Charger Type	MPPT
Battery Type	Lithium & Lead-Acid
BMS Communication	RS485 / CAN / RS232

🌐 Communication & Monitoring

Feature	Support
Built-in WiFi	Yes
Mobile App	Android & iOS
Communication Ports	USB, RS232, RS485, WiFi, Dry Contact
Firmware Upgrade	USB-A OTG

🧱 Physical & Environmental

Parameter	Value
Dimensions (D×W×H)	140 × 295 × 468 mm
Weight	13.5 kg
Operating Temperature	-10°C to +50°C
Storage Temperature	-15°C to +60°C
Humidity	0 – 90% RH (Non-condensing)

🛡️ Certifications & Standards

IEC 61682
IEC 62109-1 / IEC 62109-2
IEC 61683
Low Voltage Directive 2014/35/EU

❓ FAQs

Q1: Can Knox Krypton 9055 work without batteries?

Yes. It supports batteryless operation, running directly on solar and grid.

Q2: How many inverters can be connected together?

Up to 9 units can be connected in parallel.

Q3: Does it support lithium batteries?

Yes, it supports lithium and lead-acid batteries with BMS communication.

Q4: Is WiFi monitoring included?

Yes, built-in WiFi with Android & iOS app support.

Q5: Is it suitable for residential and commercial use?

Absolutely. Ideal for homes, offices, shops, and solar businesses.
