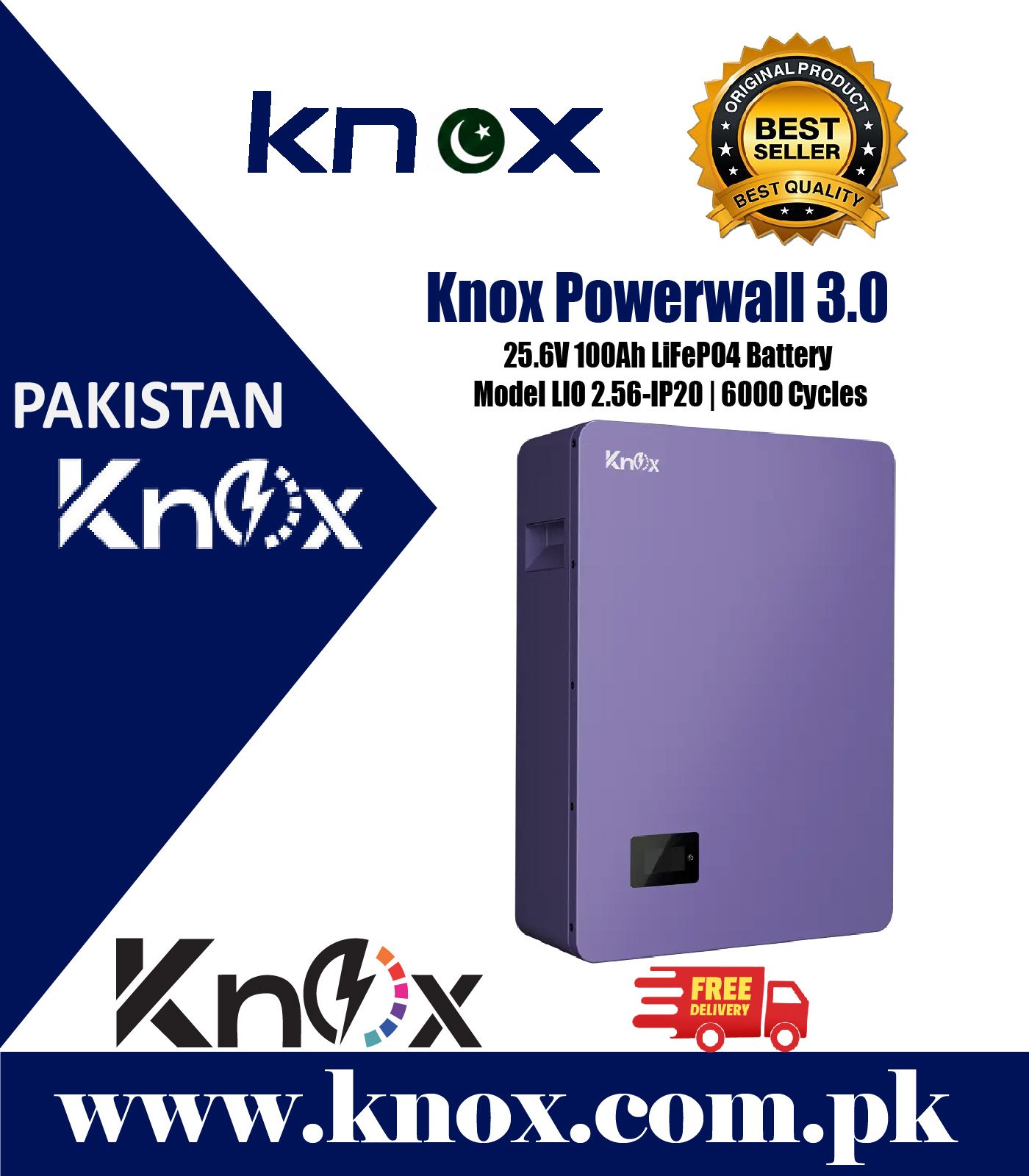

Knox Powerwall 3.0 25.6V 100Ah LiFePO4 Battery – Model LIO 2.56-IP20 | 6000 Cycles
Original price was: ₨ 139,999.₨ 113,999Current price is: ₨ 113,999.
Knox Powerwall 3.0 25.6V 100Ah LiFePO4 battery with REPT prismatic cells, 6000+ cycles @80% DOD, PACE BMS, LCD display & wide inverter compatibility. Ideal for residential solar storage.

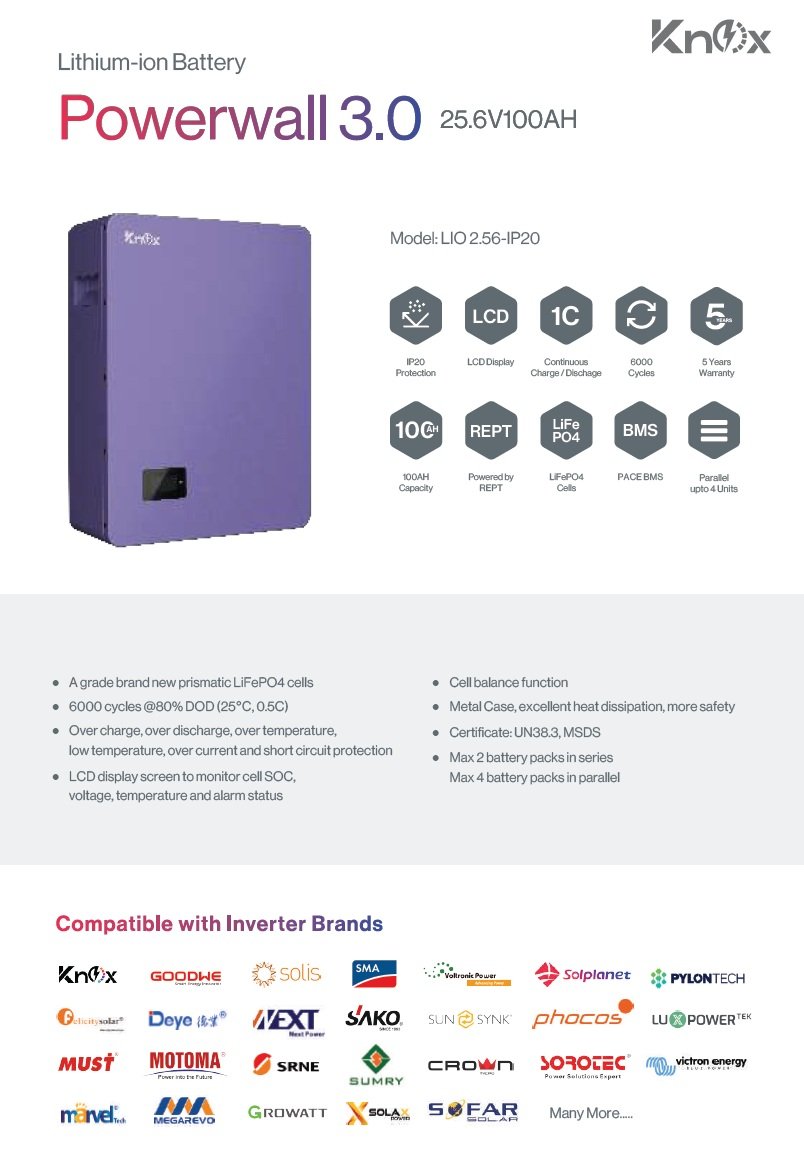

Knox Powerwall 3.0 (LIO 2.56-IP20) is a compact, safe, and long-life 2.56kWh LiFePO4 lithium battery designed for residential solar energy storage. Built with A-grade REPT prismatic cells, intelligent PACE BMS, and a real-time LCD display, it ensures reliable backup power, high efficiency, and easy system expansion.
🌟 Key Features & Benefits
-
🔋 2.56kWh Energy Capacity (25.6V 100Ah)
-
🔁 6000+ Cycles @ 80% Depth of Discharge
-
🧠 PACE Smart BMS with Cell Balancing
-
📊 LCD Display for SOC, Voltage, Temperature & Alarms
-
🏆 A-Grade REPT LiFePO4 Prismatic Cells
-
🛡 Advanced Protection (OVP, LVP, OTP, OCP, SCP)
-
🧱 Metal Enclosure for Superior Heat Dissipation
-
🔌 Series & Parallel Expansion Supported
-
📄 UN38.3 & MSDS Certified
-
🕔 5-Year Manufacturer Warranty

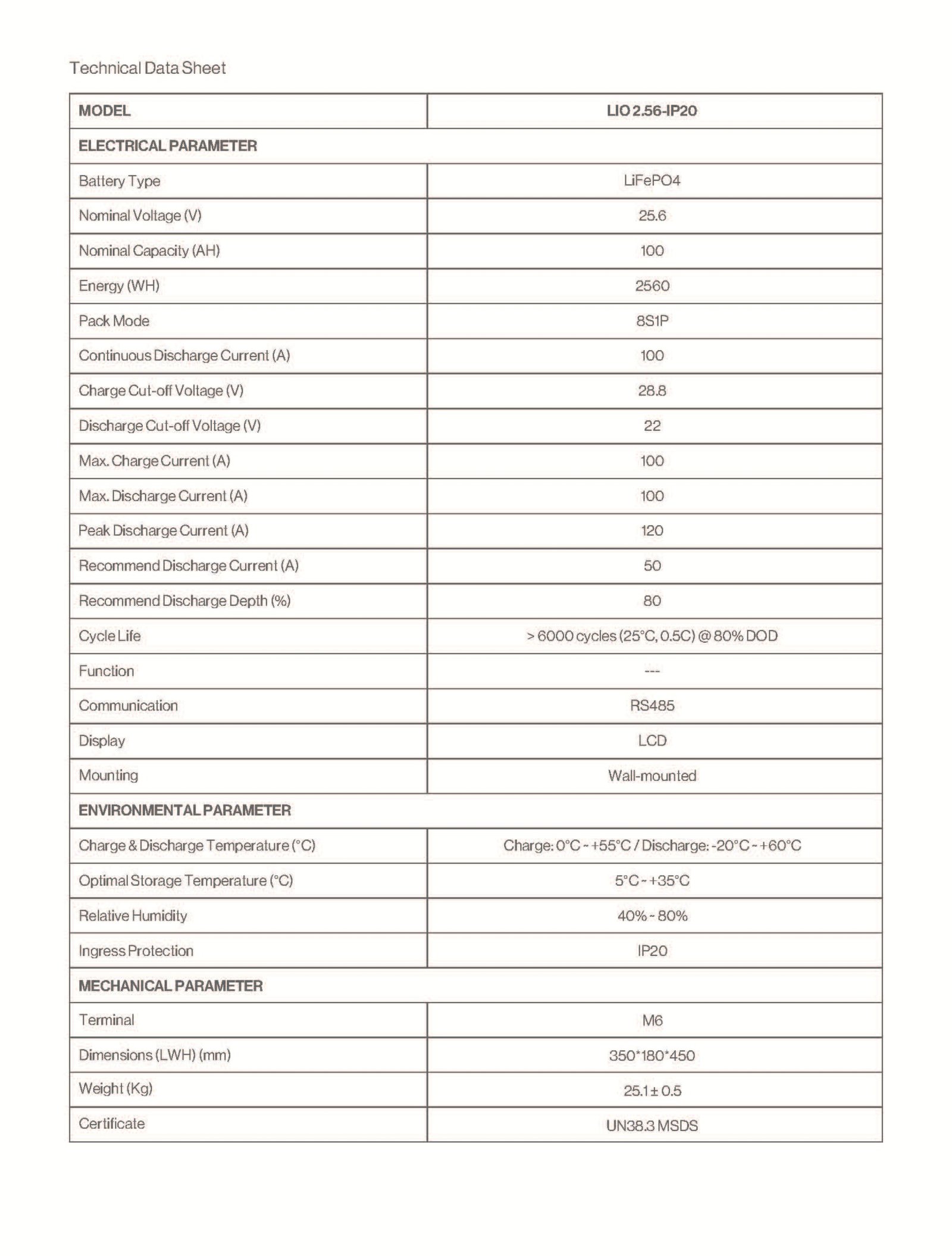

📊 Technical Specifications – Knox Powerwall 3.0
🔌 Electrical Parameters
| Specification | Details |
|---|---|
| Model | LIO 2.56-IP20 |
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| Cell Brand | REPT (A-Grade Prismatic) |
| Nominal Voltage | 25.6V |
| Nominal Capacity | 100Ah |
| Total Energy | 2560Wh (2.56kWh) |
| Pack Configuration | 8S1P |
| Charge Cut-off Voltage | 28.8V |
| Discharge Cut-off Voltage | 22V |
| Max Charge Current | 100A |
| Continuous Discharge Current | 100A |
| Peak Discharge Current | 120A |
| Recommended Discharge Current | 50A |
| Recommended DOD | 80% |
🔁 Performance & Lifecycle
| Parameter | Value |
|---|---|
| Cycle Life | >6000 Cycles |
| Test Conditions | 25°C, 0.5C @ 80% DOD |
| Series Connection | Max 2 Units |
| Parallel Connection | Max 4 Units |
🧠 Safety & Protection
-
Over-charge protection
-
Over-discharge protection
-
Over-current protection
-
Over-temperature protection
-
Low-temperature protection
-
Short-circuit protection
-
Intelligent cell balancing
🔌 Communication & Interface
| Feature | Details |
|---|---|
| Communication Port | RS485 |
| Display | LCD Screen |
| BMS Type | PACE Intelligent BMS |
🌡 Environmental Parameters
| Parameter | Range |
|---|---|
| Charge Temperature | 0°C ~ +55°C |
| Discharge Temperature | –20°C ~ +60°C |
| Optimal Storage Temp | 5°C ~ +35°C |
| Relative Humidity | 40% ~ 80% |
| Ingress Protection | IP20 |
🧱 Mechanical Parameters
| Specification | Value |
|---|---|
| Mounting Type | Wall-Mounted |
| Terminal Type | M6 |
| Dimensions (L×W×H) | 350 × 180 × 450 mm |
| Weight | 25.1 ± 0.5 kg |
| Enclosure Material | Metal Case |
📜 Certifications
-
UN38.3
-
MSDS
🔌 Compatible Inverter & Battery Brands
Knox, GoodWe, Solis, SMA, Voltronic Power, Solplanet, Pylontech, Deye, Victron Energy, Growatt, Solax Power, Sofar Solar, Sunsynk, LuxPowerTek, MUST, SRNE, SAKO, Phocos, Megarevo, Crown, Sorotec, Sumry, Motoma, Belicity Solar, Wext Next Power & many more.
💬 Customer & Installer Trust
The Knox Powerwall 3.0 is trusted by installers for its stable communication, compact size, and safety-first design, while homeowners value its long battery life, quiet operation, and real-time LCD monitoring.
❓ Frequently Asked Questions (FAQs)
Q1: Is Knox Powerwall 3.0 suitable for home solar systems?
Yes, it is designed specifically for residential solar, backup power, and hybrid inverter systems.
Q2: Can I expand the battery capacity later?
Yes. You can connect up to 4 batteries in parallel and 2 in series.
Q3: What type of lithium cells are used?
It uses A-grade REPT LiFePO4 prismatic cells, known for safety and long lifespan.
Q4: Does this battery have a display?
Yes, it features an LCD screen showing SOC, voltage, temperature, and alarm status.
Q5: Is maintenance required?
No. The battery is maintenance-free thanks to its intelligent PACE BMS.
