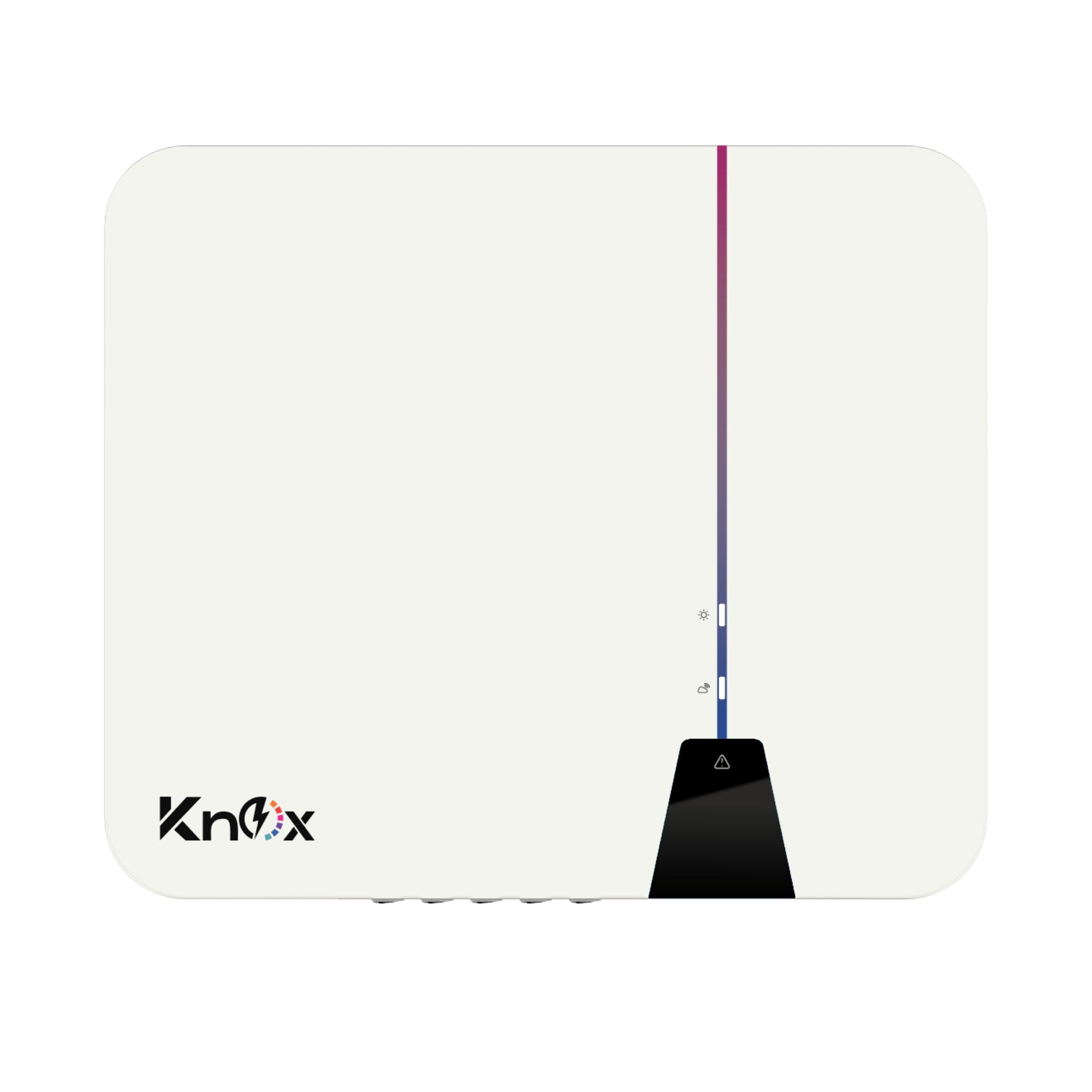

The Knox Xerox G4 Pro 30kW Three-Phase Solar Inverter is a powerful, reliable, and user-friendly solution designed for commercial and industrial solar systems. With 150% PV oversizing, IP66 protection, and smart monitoring, it delivers maximum energy yield even under challenging conditions.

🌞 PRODUCT OVERVIEW

Name: Knox Xerox G4 Pro 30kW Three-Phase Solar Inverter – High-Efficiency IP66 Smart Inverter for Commercial & Industrial Use - KNOX Pakistan
Price: 360000 PKR
Availability: InStock

Reliable Power. Smart Control. Maximum Yield.

The Knox G4 Pro Series is engineered to meet international standards, offering exceptional efficiency, robust safety features, and easy installation. Its compact wall-mounted design and advanced ShadeSol technology ensure optimal performance in real-world conditions.

🚀 KEY FEATURES

⚡ 30kW Three-Phase Output Power
📈 150% PV Array Oversizing for higher energy yields
🌤 ShadeSol Technology – improved generation in shaded conditions
📱 Ai Solar App for setup, commissioning & monitoring
🔧 Quick & Easy Installation using standard tools
🏠 Compact Wall-Mount Design
🌧 IP66 Rated – suitable for indoor & outdoor installation
🔋 20A Input Current – ideal for bifacial & large-area PV modules
🔌 Wide MPPT Voltage Range (150V–1000V)
🌍 Internationally Certified & Grid-Compliant

📊 PERFORMANCE & EFFICIENCY

Max Efficiency: 98.6%
European Efficiency: 98.3%
Harmonic Distortion (THD): < 3%
Power Factor: 0.8 leading to 0.8 lagging

Delivers clean, stable, and highly efficient solar power output.

🛡 ADVANCED SAFETY & PROTECTION

✔ Anti-Islanding Protection
✔ Ground Fault & Grid Monitoring
✔ All-pole Sensitive Residual Current Monitoring
✔ DC Reverse Polarity Protection
✔ AC Short Circuit Protection
✔ Surge Protection
✔ Arc Fault Circuit Interrupter (AFCI)
✔ DC Switch Included

Built to protect both your system and investment.

📱 SMART MONITORING & CONNECTIVITY

RS485
Wi-Fi
LAN
4G (optional)

Monitor your system anytime, anywhere with real-time performance data via the Ai Solar App.

📋 TECHNICAL SPECIFICATIONS

🔌 INPUT (DC)

Parameter	Value
Max PV Array Power	45,000 Wp (STC)
Max Input Voltage	1100 V
MPPT Voltage Range	150 – 1000 V
Rated Input Voltage	630 V
Min Input Voltage	125 V
Initial Feed-in Voltage	180 V
Max Short Circuit Current	50A / 25A / 50A
Max Operating Input Current	40A / 20A / 40A
MPPT Inputs / Strings	3 MPPT (A:2, B:1, C:2)

🔄 OUTPUT (AC)

Parameter	Value
Rated Active Power	30,000 W
Rated Apparent Power	30,000 VA
Max Apparent Power	33,000 VA
AC Nominal Voltage	230V / 380V
Rated Output Current	43.5 A
Max Output Current	47.8 A
Grid Frequency	50Hz / 60Hz
Feed-in Phases	3 / 3-N-PE

⚙ GENERAL DATA

Feature	Details
Model	G4 Pro 30K / 45kWp
Topology	Non-isolated
Cooling	Active Cooling
Protection Class	Class I
Overvoltage Category	AC: III / DC: II
Degree of Protection	IP66
Operating Temp	-30°C to +60°C
Night Consumption	< 1W
Max Altitude	3000 m
Humidity	Max 100% (non-condensing)
Dimensions (W×H×D)	488 × 425.5 × 179 mm
Weight	20 kg
Mounting	Wall-mount bracket
Country of Origin	China

📜 CERTIFICATIONS & STANDARDS

IEC 62109-1
IEC 62109-2
IEC 62727
IEC 62683
IEC 62116

Compliant with international solar and grid safety standards.

⭐ High energy yield even in shaded conditions
⭐ Rock-solid performance for commercial projects
⭐ Weatherproof and durable design
⭐ Easy installation & smart monitoring
⭐ Excellent ROI for large solar systems

🛒 WHY BUY FROM KNOX.COM.PK?

✔ Authorized Solar Product Seller
✔ Genuine Knox Inverters
✔ Best Prices for Commercial Projects
✔ Nationwide Delivery in Pakistan
✔ Expert Solar Support

❓ Frequently Asked Questions (FAQ)

🔹 Is the Knox G4 Pro 30kW inverter suitable for commercial and industrial use?

Yes. The Knox G4 Pro 30kW Three-Phase Inverter is specifically designed for commercial and industrial solar systems, including factories, plazas, warehouses, hospitals, and large offices.

🔹 Can this inverter be installed outdoors?

Absolutely. It comes with an IP66-rated enclosure, making it fully suitable for outdoor installation and resistant to dust, rain, and harsh weather conditions.

🔹 What does 150% PV oversizing mean?

150% PV oversizing means you can connect up to 45kWp of solar panels to a 30kW inverter. This helps achieve higher energy yields, especially during low sunlight and cloudy conditions.

🔹 Does this inverter support bifacial solar panels?

Yes. With a 20A input current per MPPT, the Knox G4 Pro is ideal for bifacial and large-area PV modules, ensuring maximum compatibility with modern solar panels.

🔹 How many MPPTs does the Knox G4 Pro 30kW have?

It features 3 independent MPPTs with multiple string inputs, allowing better energy harvesting and improved performance in shaded or uneven roof layouts.

🔹 Can I monitor the inverter remotely?

Yes. The inverter supports Wi-Fi, LAN, RS485, and optional 4G connectivity and can be monitored via the Ai Solar mobile app, providing real-time performance data and alerts.

🔹 What safety protections are included?

The inverter includes advanced protections such as:

Anti-islanding protection
Arc Fault Circuit Interrupter (AFCI)
Surge protection
Ground fault monitoring
DC reverse polarity & AC short-circuit protection

These ensure safe and reliable operation.

🔹 What is the efficiency of the Knox G4 Pro 30kW inverter?

It delivers an impressive maximum efficiency of 98.6% and European efficiency of 98.3%, ensuring minimal energy loss and excellent return on investment.

🔹 Is this inverter compatible with Pakistan’s grid?

Yes. It supports 230V / 380V three-phase grids, complies with international IEC standards, and is fully suitable for Pakistan’s commercial power infrastructure.

🔹 What is the operating temperature range?

The inverter is built to operate reliably in extreme conditions, with a temperature range of -30°C to +60°C, making it ideal for Pakistan’s climate.
