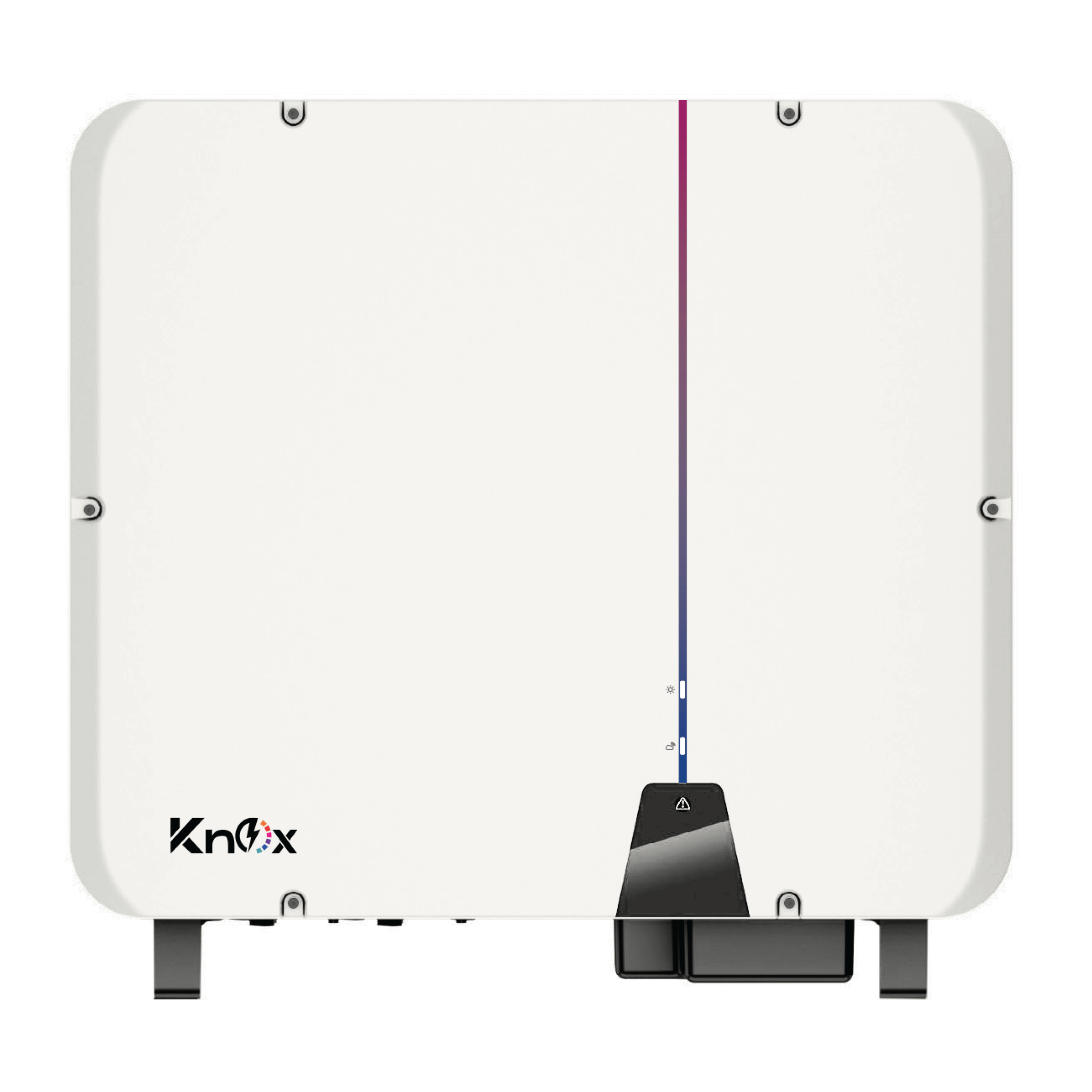

ULTRA-POWER Knox Xerox G4 Pro 60kW Three Phase Solar Inverter | Commercial & Industrial Grade
Original price was: ₨ 519,999.₨ 509,999Current price is: ₨ 509,999.
Knox Xerox G4 Pro 60kW three phase solar inverter with 5 MPPTs, IP66 outdoor protection, 150% PV oversizing & smart monitoring.
Knox Xerox G4 Pro 60KW / 90kWp
The Knox Xerox G4 Pro 60kW Three Phase Solar Inverter is a high-performance commercial and industrial solar inverter engineered for large-scale PV systems. With 5 MPPTs, 150% PV oversizing, and ShadeSol intelligent technology, it delivers maximum power output, system stability, and long-term reliability in demanding environments.
🌟 Positive Buyer Sentiments
✔ Trusted Knox Xerox commercial-grade quality
✔ Excellent performance in partial shading
✔ Strong outdoor build with IP66 protection
✔ Installer-friendly design and smart monitoring
✔ Proven efficiency and international certifications
🚀 Key Features & Benefits
-
🔌 Phoenix Contact DC connectors for tool-free installation
-
⚡ 150% PV oversizing for higher solar yields
-
🧠 Up to 5 MPPTs for flexible PV system design
-
🌥 Knox Xerox ShadeSol Technology for shaded conditions
-
🛡 Type II AC & DC surge protection
-
🔁 Fuse-free architecture reduces BOS cost
-
📱 Setup, commissioning & monitoring via Ai Solar App
-
🌧 IP66-rated enclosure for outdoor use
-
❄ Stable operation from –25°C to +60°C
📊 Technical Specifications
🔹 General Information
| Feature | Specification |
|---|---|
| Brand | Knox Xerox |
| Product Series | G4 Pro |
| Product Model | G4 Pro 60K / 90kWp |
| Rated Active Power | 60,000 W |
| Max PV Array Power | 90,000 Wp |
| Rated Apparent Power | 60,000 VA |
| Feed-in Phases | 3 / 3-N-PE |
| Topology | Non-isolated |
🔹 DC Input (PV Side)
| Specification | Details |
|---|---|
| MPP Voltage Range | 200V – 1000V |
| Rated Input Voltage | 630V |
| Max Input Voltage | 1100V |
| Max Input Current | 20A per string |
| MPPTs / Strings | 5 MPPTs / 2 strings |
| Initial Feed-in Voltage | 250V |
| Min Input Voltage | 200V |
🔹 AC Output
| Specification | Details |
|---|---|
| AC Nominal Voltage | 220V / 380V – 230V / 400V |
| Grid Frequency | 50Hz / 60Hz |
| Rated Output Current | 95.3 A |
| Power Factor | 0.8 leading to 0.8 lagging |
| Harmonic Distortion (THD) | < 3% |
🔹 Efficiency & Protection
| Feature | Details |
|---|---|
| Max Efficiency | 98.6% |
| European Efficiency | 98.3% |
| Cooling Concept | Active Cooling |
| DC Switch | Integrated |
| Surge Protection | Type II (AC & DC) |
| Anti-Islanding | Yes |
| AFCI | Yes |
🔹 Mechanical & Environmental
| Feature | Details |
|---|---|
| Dimensions (W × H × D) | 670 × 640 × 270 mm |
| Weight | 42.5 kg |
| Protection Rating | IP66 |
| Operating Temperature | –25°C to +60°C |
| Max Altitude | 4000 m |
| Mounting | Wall-mounted |
🔹 Communication & Compliance
| Feature | Details |
|---|---|
| Communication | RS485 / Wi-Fi / LAN / 4G |
| LED Indicators | Status / Fault / Communication |
| Country of Manufacture | China |
| Certifications | CE, IEC 62109-1/2, IEC 61727, IEC 62116, IEC 61683, G98/G99, VDE4105 |
❓ FAQs (SEO Friendly)
Q1: Is the Knox Xerox G4 Pro 60kW suitable for commercial solar projects?
Yes, the Knox Xerox G4 Pro 60kW is specifically designed for commercial and industrial solar power systems.
Q2: How many MPPTs does the Knox Xerox G4 Pro 60kW have?
It features 5 independent MPPTs for maximum flexibility and energy optimization.
Q3: Can the Knox Xerox G4 Pro inverter be installed outdoors?
Yes, with IP66 protection, it is fully suitable for outdoor installation.
Q4: Does it support bifacial solar panels?
Yes, the 20A per string input current makes it ideal for bifacial modules.
Q5: How can I monitor the inverter?
Monitoring is available via the Knox Xerox Ai Solar App, Wi-Fi, LAN, RS485, or 4G.
